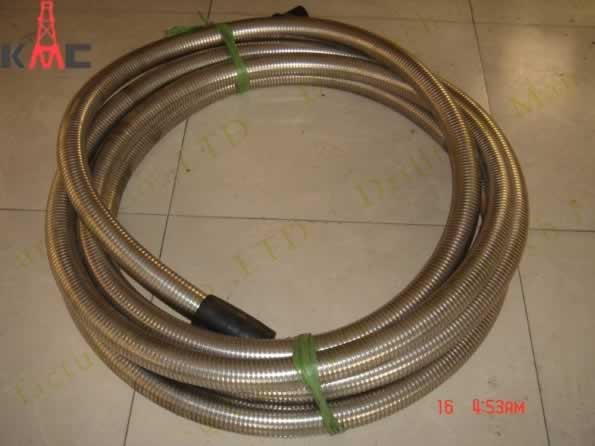

Armoured fire hose

>>Armoured fire hose Product features：

Structure: high pressure steel wire spiral rubber hose as substrate, the outer shell coating fireproof coating layer, steel wire braided layer and flame retardant layer.

USES: oilfield well control operations, metal smelting and chemical industry with the high temperature of heat source or heat radiation source environmental conditions.

Implement standard/SPECIFICATION: API SPEC 16 c

Can choose refractory or not refractory

>>Product type and specification：

Hose size	Inside Diameter mm	Reinforcement Diameter mm	Outside Diameter mm	Working Pressure MPa		Proof Pressure MPa		Burst Pressure MPa		Min.Bend Radius mm	Weight Kg/m
Hose size	Inside Diameter mm	Reinforcement Diameter mm	Outside Diameter mm	MPa	Psi	MPa	Psi	MPa	Psi	Min.Bend Radius mm	Weight Kg/m
Φ13(1/2 )	13±0.5	22.2±0.8	44±1.0	34.5	5000	69	10000	87.5	15000	230	750
Φ16(5/8 )	16±0.5	26±0.8	47±1.5	34.5	5000	69	10000	87.5	15000	260	750
Φ19(3/4)	19±0.5	30±0.8	52±1.5	34.5	5000	69	10000	87.5	15000	300	750
Φ25(1)	25±0.8	36±0.8	59±1.5	34.5	5000	69	10000	87.5	15000	360	750
Φ32(11/4)	32±0.8	44±0.8	69±2.0	34.5	5000	69	10000	87.5	15000	470	750
Φ38(11/2)	38±1.0	50.8±1.0	76±2.0	34.5	5000	69	10000	87.5	15000	570	750
Φ51(2)	51±1.0	63.8±1.0	91±2.0	34.5	5000	69	10000	87.5	15000	740	750
Φ102(4)	102±1.0	129.0±1.0	157±2.0	34.5	5000	69	10000	87.5	15000	1500	750
