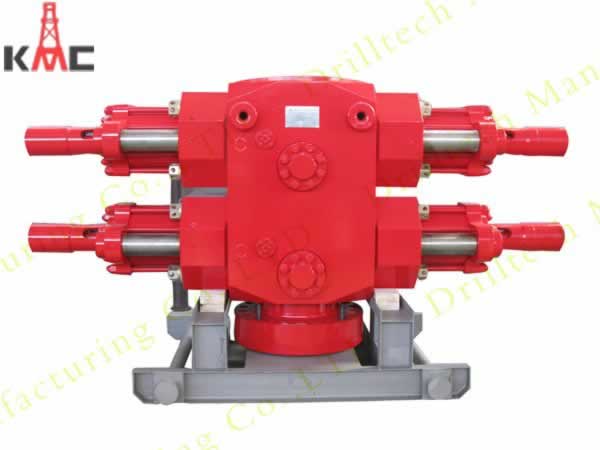

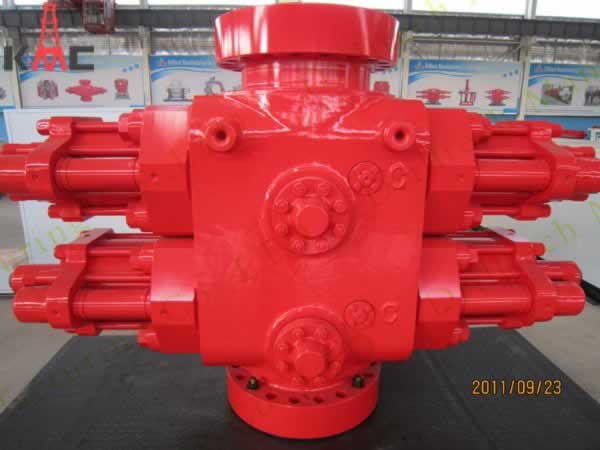

Cameron style Bop





>>Cameron style BOP Product features：

Structural style：Cameron style

Two kinds of locking systen could be chosen:the manual locking system and the automatic hydaulic locking system

Not only the pipe rams and blind rams but aslo the variable bore rams and shear rams are available without any structure change

It is easy and convenient on-site to open the bonners by hydraulic pressure

The outlets on the both sides of the body make the operation on site flexible

The pressurized self-sealing sealing mechanism is used between the body and bonnets,so it is not necessary to apply too much pretightening force to secure the reliability of sealing

It is very convenient to lift and transport the BOPs with the four lifting rods

The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure

The ring grooves of flanges are all lined with the corrosion resistant alloy

Matched-manufacturing is not necessary for the bonnets and body,so the diserepancy could be eliminated by thestructure.And it is convenient for the maintenance in the future

According to the latest API Spec 16A standard

According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

According to user requirements and the use of environmental can choose casting or forging.

>>Product type and specification：

Item	Type	Specification
1	7-1/16″-3000psi Single ram BOP/Double ram BOP	Bore: 7-1/16″ Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
2	7-1/16″-5000psi Single ram BOP/Double ram BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7 1/16″-5000psi 6B R46 SST Studded Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged
3	7-1/16″-10000psi Single ram BOP/Double ram BOP	Bore: 7-1/16" Working pressure: 10000psi Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged
4	7-1/16″-15000psi Single ram BOP/Double ram BOP	Bore: 7-1/16″ Working pressure: 15,000psi Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
5	9″-3000psi Single ram BOP/Double ram BOP	Bore: 9″ Working pressure: 3,000psi Top connection: 9″-3000psi 6B R49 SST Studded Bottom connection: 9″-3000psi 6B R49 SST Flanged
6	9″-5000psi Single ram BOP/Double ram BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9″-5000psi 6B R50 SST Studded Bottom connection: 9″-5000psi 6B R50 SST Flanged
7	9″-10000psi    Single ram BOP/Double ram BOP	Bore: 9″ Working pressure: 10,000psi Top connection: 9-″10000psi 6BX BX157 SST Studded Bottom connection: 9″-10000psi 6BX BX157 SST Flanged
8	11″-3000psi    Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 3,000psi Top connection: 11″-3000psi 6B R53 SST Studded Bottom connection: 11″-3000psi 6B R53 SST Flanged
9	11″-5000psi    Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-5000psi 6B R54 SST Flanged
10	11″-10000psi   Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 SST Studded Bottom connection: 11″-10000psi 6BX BX158 SST Flanged
11	11″-15000psi   Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 15,000psi Top connection: 11″-15000psi 6BX BX158 SST Studded Bottom connection: 11”-15000psi 6BX BX158 SST Flanged
12	13 5/8″-5000psi Single ram BOP/Double ram BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged
13	13 5/8″-10000psi Single ram BOP/Double ram BOP	Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged
14	13 5/8″-15000psi Single ram BOP/Double ram BOP	Bore: 13 5/8″ Working pressure: 15,000psi Top connection:13 5/8″-15000psi 6BX BX159 SST Studded Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged
15	16 3/4″-10000psi Single ram BOP/Double ram BOP	Bore: 16 3/4″ Working pressure: 10,000psi Top connection: 16 3/4″-10000psi 6BX BX162 SST Studded Bottom connection: 16 3/4″-10000psi 6BX BX162 SST Flanged
16	18 3/4″-15000psi Single ram BOP/Double ram BOP	Bore: 18 3/4″ Working pressure: 15,000psi Top connection: 18 3/4″-15000psi 6BX BX164 SST Studded Bottom connection: 18 3/4″-15000psi 6BX BX164 SST Flanged
