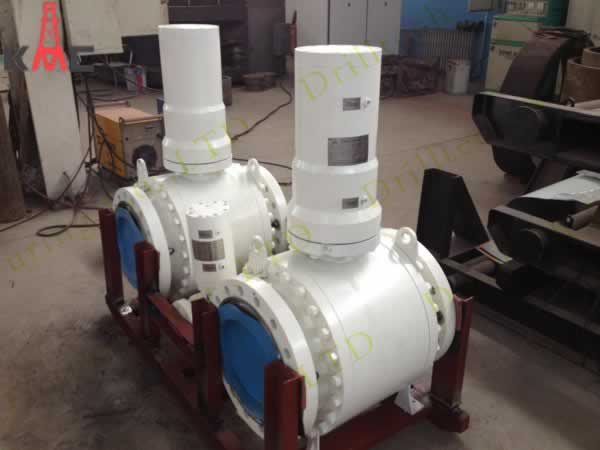

Hydraulic actuation ball valve
> > Hydraulic actuation ball valve Product features:
Ball valve and the body is made of high quality stainless steel manufacturing, the anti-corrosion performance is good.
Ball valves with metal sealing and can meet the drilling mud medium environment.
Hydraulic driving part of the structure of small size, can meet the narrow installation environment.
Hydraulic drive torque, with blowout preventer hydraulic control platform can satisfy the use requirement.
>>Product type and specification:
The ball valve SIZE DN(IN) | Pressure level | |||||
PN20 (150level) | PN50 (300 level) | PN64 (400 level) | PN100 (600 level) | PN150 (900 level) | PN250 (1500 level) | |
Torque N.m | ||||||
50(2) | 57 | 99 | 118 | 168 | 228 | 390 |
80(3) | 122 | 212 | 254 | 360 | 512 | 831 |
100(4) | 192 | 335 | 467 | 572 | 946 | 1524 |
150(6) | 324 | 544 | 647 | 912 | 1784 | 2934 |
200(8) | 647 | 995 | 1206 | 2177 | 4116 | 7215 |
250(10) | 1105 | 1736 | 2638 | 3093 | 5910 | 11128 |
300(12) | 1502 | 2388 | 2929 | 4282 | 10137 | 16103 |
350(14) | 1946 | 3224 | 3971 | 7458 | 14141 | 24518 |
400(16) | 3164 | 5139 | 6307 | 9310 | 18866 | 29630 |
450(18) | 3793 | 6194 | 7609 | 11233 | 22400 | |
500(20) | 4769 | 7826 | 9623 | 16815 | 28544 | |
550(22) | 5695 | 9454 | 11651 | 20333 | 42427 | |
600(24) | 7529 | 12958 | 15900 | 24554 | 53163 | |
650(26) | 8693 | 14394 | 17727 | 32488 | ||
700(28) | 9832 | 15620 | 20182 | 37558 | ||
750(30) | 11172 | 18703 | 23086 | 44293 | ||
800(32) | 12494 | 21030 | 25985 | 49598 |
|
