Shaffer style Bop



>>Shaffer style BOP Product features：

Structural style：Shaffer style

Two kinds of locking systen could be chosen:the manual locking system and the automatic hydaulic locking system

Not only the pipe rams and blind rams but aslo the variable bore rams and shear rams are available without any structure change

It is easy and convenient on-site to open the bonners by hydraulic pressure

The outlets on the both sides of the body make the operation on site flexible

The pressurized self-sealing sealing mechanism is used between the body and bonnets,so it is not necessary to apply too much pretightening force to secure the reliability of sealing

lt is very convenient to lift and transport the BOPs with the four lifting rods

The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure

The ring grooves of flanges are all lined with the corrosion resistant alloy

Matched-manufacturing is not necessary for the bonnets and body,so the diserepancy could be eliminated by thestructure.And it is convenient for the maintenance in the future

According to the latest API Spec 16A standard

According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

The added wear-belts to the original design can prevent and improve the Cylinder-grinding because of unbalanced loading

>>Product type and specification：

Item	Type	Specification

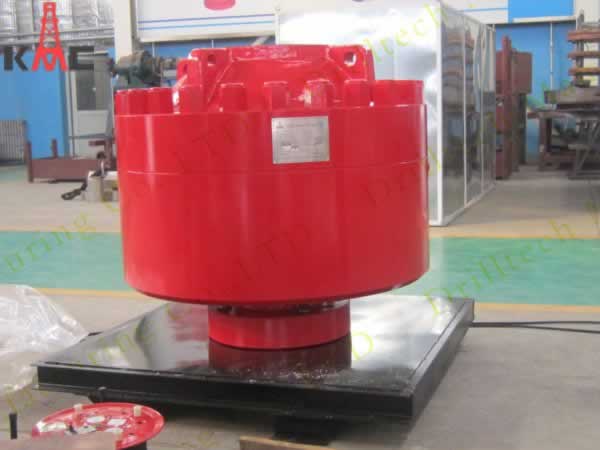

1	7-1/16″-3000psi Annular BOP	Bore: 7-1/16″ Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

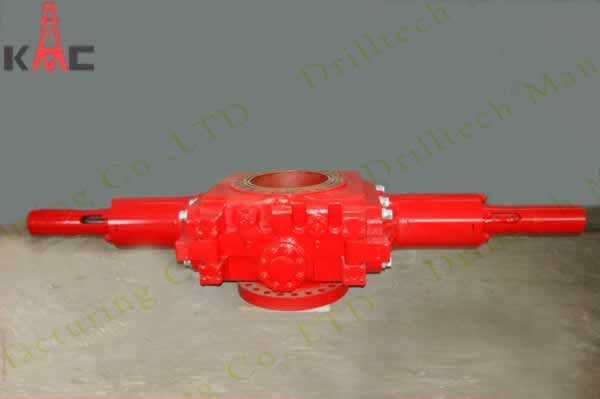

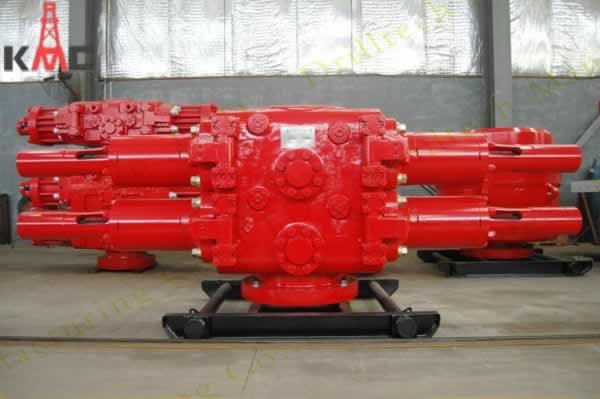

2	7-1/16″-3000psi Single ram BOP/ Double ram BOP	Bore: 7-1/16″ Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
3	7-1/16″-5000psi Annular BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7-1/16″-5000psi 6B R46 SST Studded Bottom connection: 7-1/16″-5000psi 6B R46 SST Flanged
5	7-1/16″-5000psi Single ram BOP/ Double ram BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7 1/16″-5000psi 6B R46 SST Studded Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged
7	7-1/16″-5000/10000psi Annular BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7-1/16″-5000psi 6B R46 SST Studded Bottom connection: 7-1/16″-10000psi 6BX BX156 SST Flanged
8	7-1/16″-10000psi Single ram BOP/ Double ram BOP	Bore: 7-1/16" Working pressure: 10,000psi Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged
10	9″-3000psi     Annular BOP	Bore: 9″ Working pressure: 3,000psi Top connection: 9″-3000psi 6B R49 SST Studded Bottom connection: 9″-3000psi 6B R49 SST Flanged
11	9″-3000psi      Single ram BOP/ Double ram BOP	Bore: 9″ Working pressure: 3,000psi Top connection: 9″-3000psi 6B R49 SST Studded Bottom connection: 9″-3000psi 6B R49 SST Flanged
13	9″-5000psi     Annular BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9″-5000psi 6B R50 SST Studded Bottom connection: 9″-5000psi 6B R50 SST Flanged
14	9″-5000psi      Single ram BOP/ Double ram BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9″-5000psi 6B R50 SST Studded Bottom connection: 9″-5000psi 6B R50 SST Flanged
15	9″-5000/10000psi Annular BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9-″5000psi 6B R50 SST Studded Bottom connection: 9″-10000psi 6BX BX157 SST Flanged
16	9″-10000psi     Single ram BOP/ Double ram BOP	Bore: 9″ Working pressure: 10,000psi Top connection: 9-″10000psi 6BX BX157 SST Studded Bottom connection: 9″-10000psi 6BX BX157 SST Flanged
17	11″-3000psi    Annular BOP	Bore: 11″ Working pressure: 3,000psi Top connection: 11″-3000psi 6B R53 SST Studded Bottom connection: 11″-3000psi 6B R53 SST Flanged
18	11″-3000psi     Single ram BOP/Double ram BOP	Bore: 11″ Working pressure: 3,000psi Top connection: 11″-3000psi 6B R53 SST Studded Bottom connection: 11″-3000psi 6B R53 SST Flanged
19	11″-5000psi    Annular BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-5000psi 6B R54 SST Flanged
20	11″-5000psi     Single ram BOP/ Double ram BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-5000psi 6B R54 SST Flanged
21	11″-5000/10000psi    Annular BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-10000psi 6BX BX158 SST Flanged
22	11″-10000psi    Single ram BOP/ Double ram BOP	Bore: 11″ Working pressure: 10,000psi Top connection: 11″-10000psi 6BX BX158 SST Studded Bottom connection: 11″-10000psi 6BX BX158 SST Flanged
23	13 5/8″-3000psi Annular BOP	Bore: 13 5/8″ Working pressure: 3,000psi Top connection: 13 5/8″-3000psi 6B R57 SST Studded Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged
24	13 5/8″-3000psi  Single ram BOP/ Double ram BOP	Bore: 13 5/8″ Working pressure: 3,000psi Top connection: 13 5/8″-3000psi 6B R57 SST Studded Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged
25	13 5/8″-5000psi   Annular BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged
26	13 5/8″-5000psi  Single ram BOP/ Double ram BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged
27	13 5/8″-5000/10000psi Annular BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged
28	13 5/8″-10000psi Single ram BOP/ Double ram BOP	Bore: 13 5/8″ Working pressure: 10,000psi Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged
29	16 3/4″-5000psi Annular BOP	Bore: 16 3/4″ Working pressure: 5,000psi Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded Bottom connection: 16 3/4″-5000psi 6BX BX162 SST Flanged
30	16 3/4″-5000psi  Single ram BOP/ Double ram BOP	Bore: 16 3/4″ Working pressure: 5,000psi Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded Bottom connection: 16 3/4″-5000psi 6BX BX162 SST Flanged
31	18 3/4″-5000psi Annular BOP	Bore: 18 3/4″ Working pressure: 5,000psi Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded Bottom connection: 18 3/4″-5000psi 6BX BX163 SST Flanged
32	18 3/4″ -5000psi Single ram BOP/ Double ram BOP	Bore: 18 3/4″ Working pressure: 5,000psi Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded Bottom connection: 18 3/4″-5000psi 6BX BX163 SST Flanged
33	18 3/4″-5000/10000psi Annular BOP	Bore: 18 3/4″ Working pressure: 5,000psi Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded Bottom connection: 18 3/4″-10000psi 6BX BX164 SST Flanged
34	18 3/4″-10000psi Single ram BOP/ Double ram BOP	Bore: 18 3/4″ Working pressure: 10,000psi Top connection: 18 3/4″-10000psi 6BX BX164 SST Studded Bottom connection: 18 3/4″-10000psi 6BX BX164 SST Flanged
35	20 3/4″-3000psi Annular BOP	Bore: 20 3/4″ Working pressure: 3,000psi Top connection: 20 3/4″-3000psi 6B R74 SST Studded Bottom connection: 20 3/4″-3000psi 6B R74 SST Flanged
36	20 3/4″-3000psi  Single ram BOP/ Double ram BOP	Bore: 20 3/4″ Working pressure: 3,000psi Top connection: 20 3/4″-3000psi 6B R74 SST Studded Bottom connection: 20 3/4″-3000psi 6B R74 SST Flanged
37	21 1/4″-2000psi  Single ram BOP/ Double ram BOP	Bore: 21 1/4″ Working pressure: 2,000psi Top connection: 21 1/4″-2000psi 6B R73 SST Studded Bottom connection: 21 1/4″-2000psi 6B R73 SST Flanged
38	21 1/4″-5000psi Annular BOP	Bore: 21 1/4″ Working pressure: 5,000psi Top connection: 21 1/4″-5000psi 6B BX165 SST Studded Bottom connection: 21 1/4″-5000psi 6B BX165 SST Flanged
39	21 1/4″-5000psi  Single ram BOP/ Double ram BOP	Bore: 21 1/4″ Working pressure: 5,000psi Top connection: 21 1/4″-5000psi 6B BX165 SST Studded Bottom connection: 21 1/4″-5000psi 6B BX165 SST Flanged
40	21 1/4″-5000/10000psi Annular BOP	Bore: 21 1/4″ Working pressure: 5,000psi Top connection: 21 1/4″-5000psi 6B BX165 SST Studded Bottom connection: 21 1/4″-10000psi 6B BX166 SST Flanged
41	21 1/4″-10000psi Single ram BOP/ Double ram BOP	Bore: 21 1/4″ Working pressure: 10,000psi Top connection: 21 1/4″-10000psi 6B BX166 SST Studded Bottom connection: 21 1/4″-10000psi 6B BX166 SST Flanged
42	26 3/4″-2000psi Annular BOP	Bore: 26 3/4″ Working pressure: 2,000psi Top connection: 26 3/4″-2000psi 6B BX167 SST Studded Bottom connection: 26 3/4″-2000psi 6B BX167 SST Flanged
43	26 3/4″-2000psi  Single ram BOP/ Double ram BOP	Bore: 26 3/4″ Working pressure: 2,000psi Top connection: 26 3/4″-2000psi 6B BX167 SST Studded Bottom connection: 26 3/4″-2000psi 6B BX167 SST Flanged
44	26 3/4″-3000psi Annular BOP	Bore: 26 3/4″ Working pressure: 3,000psi Top connection: 26 3/4″-3000psi 6B BX168 SST Studded Bottom connection: 26 3/4″-3000psi 6B BX168 SST Flanged
45	26 3/4″-3000psi  Single ram BOP/ Double ram BOP	Bore: 26 3/4″ Working pressure: 3,000psi Top connection: 26 3/4″-3000psi 6B BX168 SST Studded Bottom connection: 26 3/4″-3000psi 6B BX168 SST Flanged
