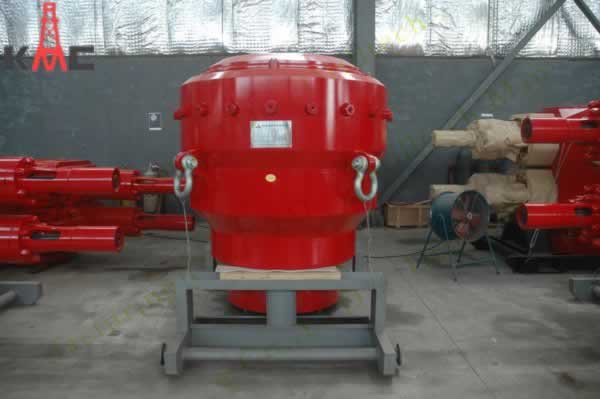

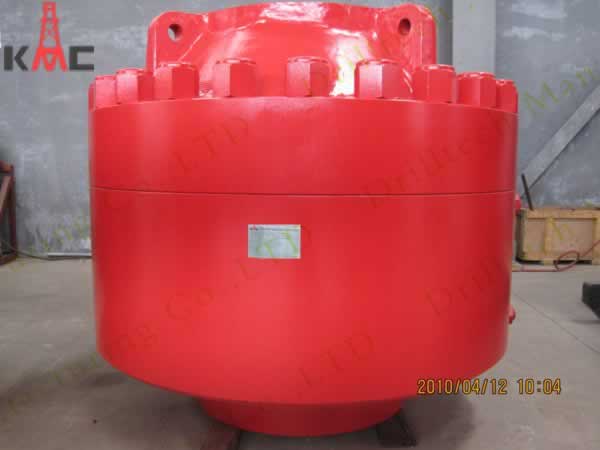

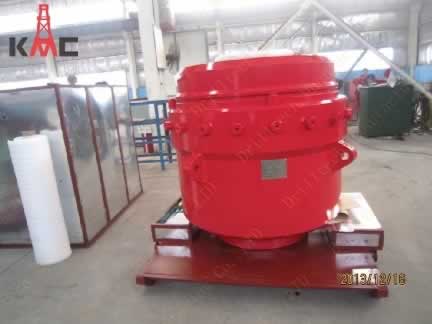

Annular BOP





>>Annular BOP Product features：

Structural style：Shaffer style.Hydril style

According to the latest API Spec 16A standard

According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

The ring grooves of flanges are all lined with the corrosion resistant alloy

The added wear-belts to the original design can prevent and improve the Cylinder-grinding because of unbalanced loading



>>Product type and specification：

Item

Type

Specification

1

7-1/16″-3000psi          Annular BOP

Bore: 7-1/16″
Working pressure: 3,000psi
Top connection: 7-1/16″-3000psi 6B R45 SST Studded
Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

2

7-1/16″-5000psi          Annular BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7-1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7-1/16″-5000psi 6B R46 SST Flanged

3

7-1/16″-5000/10000psi      Annular BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7-1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7-1/16″-10000psi 6BX BX156 SST Flanged

1

7-1/16″-10000/15000psi   Annular BOP

Bore: 7-1/16″
Working pressure: 10,000psi
Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged

4

9″-3000psi               Annular BOP

Bore: 9″
Working pressure: 3,000psi
Top connection: 9″-3000psi 6B R49 SST Studded
Bottom connection: 9″-3000psi 6B R49 SST Flanged

5

9″-5000psi               Annular BOP

Bore: 9″
Working pressure: 5,000psi
Top connection: 9″-5000psi 6B R50 SST Studded
Bottom connection: 9″-5000psi 6B R50 SST Flanged

6

9″-5000/10000psi         Annular BOP

Bore: 9″
Working pressure: 5,000psi
Top connection: 9-″5000psi 6B R50 SST Studded
Bottom connection: 9″-10000psi 6BX BX157 SST Flanged

7

11″-3000psi               Annular BOP

Bore: 11″
Working pressure: 3,000psi
Top connection: 11″-3000psi 6B R53 SST Studded
Bottom connection: 11″-3000psi 6B R53 SST Flanged

8

11″-5000psi                  Annular BOP

Bore: 11″
Working pressure: 5,000psi
Top connection: 11″-5000psi 6B R54 SST Studded
Bottom connection: 11″-5000psi 6B R54 SST Flanged

9

11″-5000/10000psi            Annular BOP

Bore: 11″
Working pressure: 5,000psi
Top connection: 11″-5000psi 6B R54 SST Studded
Bottom connection: 11″-10000psi 6BX BX158 SST Flanged

10

13 5/8″-3000psi                  Annular BOP

Bore: 13 5/8″
Working pressure: 3,000psi
Top connection: 13 5/8″-3000psi 6B R57 SST Studded
Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged

11

13 5/8″-5000psi                    Annular BOP

Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged

12

13 5/8″-5000/10000psi          Annular BOP

Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged

5

13 5/8″-10000/15000psi           Annular BOP

Bore: 13 5/8″
Working pressure: 10,000psi
Top connection:13 5/8″-10000psi 6BX BX159 SST Studded
Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged

13

16 3/4″-5000psi           Annular BOP

Bore: 16 3/4″
Working pressure: 5,000psi
Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded
Bottom connection: 16 3/4″-5000psi 6BX BX162 SST Flanged

7

16 3/4″-5000/10000psi     Annular BOP

Bore: 16 3/4″
Working pressure: 5,000psi
Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded
Bottom connection: 16 3/4″-10000psi 6BX BX162 SST Flanged

14

18 3/4″-5000psi               Annular BOP

Bore: 18 3/4″
Working pressure: 5,000psi
Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded
Bottom connection: 18 3/4″-5000psi 6BX BX163 SST Flanged

15

18 3/4″-5000/10000psi        Annular BOP

Bore: 18 3/4″
Working pressure: 5,000psi
Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded
Bottom connection: 18 3/4″-10000psi 6BX BX164 SST Flanged

8

18 3/4″-10000/15000psi        Annular BOP

Bore: 18 3/4″
Working pressure: 10,000psi
Top connection: 18 3/4″-10000psi 6BX BX164 SST Studded
Bottom connection: 18 3/4″-15000psi 6BX BX164 SST Flanged

16

20 3/4″-3000psi              Annular BOP

Bore: 20 3/4″
Working pressure: 3,000psi
Top connection: 20 3/4″-3000psi 6B R74 SST Studded
Bottom connection: 20 3/4″-3000psi 6B R74 SST Flanged

9

21 1/4″-2000psi                    Annular BOP

Bore: 21 1/4″
Working pressure: 2,000psi
Top connection: 21 1/4″-2000psi 6B R73 SST Studded
Bottom connection: 21 1/4″-2000psi 6B R73 SST Flanged

17

21 1/4″-5000psi                        Annular BOP

Bore: 21 1/4″
Working pressure: 5,000psi
Top connection: 21 1/4″-5000psi 6B BX165 SST Studded
Bottom connection: 21 1/4″-5000psi 6B BX165 SST Flanged

18

21 1/4″-5000/10000psi            Annular BOP

Bore: 21 1/4″
Working pressure: 5,000psi
Top connection: 21 1/4″-5000psi 6B BX165 SST Studded
Bottom connection: 21 1/4″-10000psi 6B BX166 SST Flanged

19

26 3/4″-2000psi                      Annular BOP

Bore: 26 3/4″
Working pressure: 2,000psi
Top connection: 26 3/4″-2000psi 6B BX167 SST Studded
Bottom connection: 26 3/4″-2000psi 6B BX167 SST Flanged

20

26 3/4″-3000psi                       Annular BOP

Bore: 26 3/4″
Working pressure: 3,000psi
Top connection: 26 3/4″-3000psi 6B BX168 SST Studded
Bottom connection: 26 3/4″-3000psi 6B BX168 SST Flanged
