BOP for workover





>>BOP for workover Product features:

l According to the latest API Spec 16A standard

l Structural style：Cameron style;Shaffer style.

l According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

l The ring grooves of flanges are all lined with the corrosion resistant alloy

l Forging structure makes the BOPs smaller and lighter, and convenient for installing and transporting.

l All exposed surfaces including the shell, bonnets, cylinders and cylinder heads are chemical nickel plated with better corrosion prevention properties.

l For convenient ram assemblies changing, there’re two guiding rods on both sides of the bonnets.



>>Product type and specification：

Item

Type

Specification

1

7-1/16″-3000psi Annular BOP

Bore: 7-1/16″
Working pressure: 3000psi
Top connection: 7-1/16″-3000psi 6B R45 SST Studded
Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

2

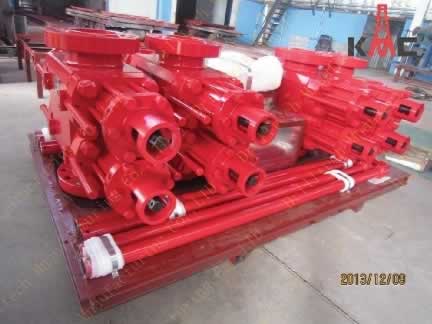

7-1/16″-3000psi Double ram BOP

Bore: 7-1/16”
Working pressure: 3,000psi
Top connection: 7-1/16″-3000psi 6B R45 SST Studded
Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

3

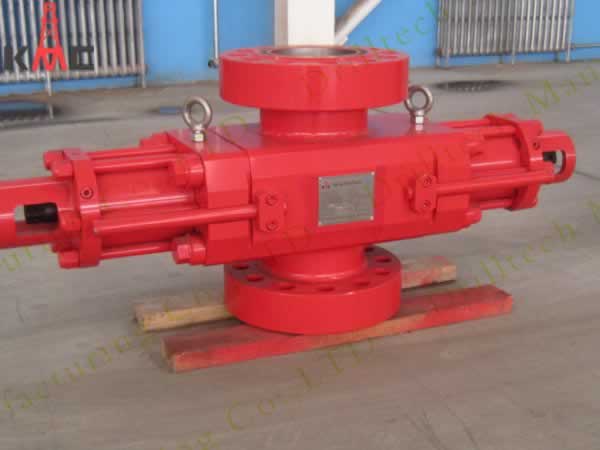

7-1/16″-3000psi Single ram BOP

Bore: 7-1/16″
Working pressure: 3,000psi
Top connection: 7-1/16″-3000psi 6B R45 SST Studded
Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

4

7-1/16″-5000psi Annular BOP

Bore: 7-1/16″
Working pressure: 5000psi
Top connection: 7-1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7-1/1″6-5000psi 6B R46 SST Flanged

5

7-1/16″-5000psi Double ram BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7 1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged

6

7-1/16″-5000psi Single ram BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7 1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged

7

7-1/16″-5000/10000psi Annular BOP

Bore: 7-1/16″
Working pressure: 5000psi
Top connection: 7-1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7-1/16″-10000psi 6BX BX156 SST Flanged

8

7-1/16″-10000psi Double ram BOP

Bore: 7-1/16″
Working pressure:10000psi
Top connection: 7 1/1″6-10000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged

9

7-1/16″-10000psi Single ram BOP

Bore: 7-1/16"
Working pressure: 10000psi
Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged

10

7-1/16″-10000/15000psi Annular BOP

Bore: 7-1/16″
Working pressure: 10000psi
Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged

11

7-1/16″-15000psi Double ram BOP

Bore: 7-1/16″
Working pressure: 15,000psi
Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged

12

7-1/16″-15000psi Single ram BOP

Bore: 7-1/16″
Working pressure: 15,000psi
Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
