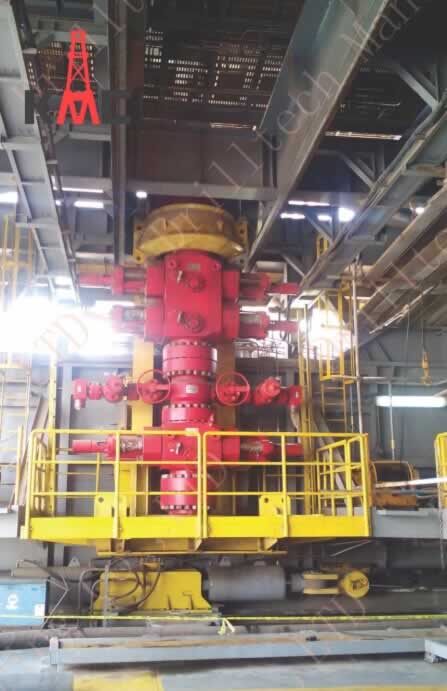

Drilling BOP





>>Drilling BOP Product features：

Ram preventer structure form：Cameron style;Shaffer style.

Annular preventer structure form：Shaffer style;Hydril style

The ring grooves of flanges are all lined with the corrosion resistant alloy

According to the latest API Spec 16A standard

According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

According to user requirements and the use of environmental can choose casting or forging.

Two kinds of locking systen could be chosen:the manual locking system and the automatic hydaulic locking system

Not only the pipe rams and blind rams but aslo the variable bore rams and shear rams are available without any structure change

The added wear-belts to the original design can prevent and improve the Cylinder-grinding because of unbalanced loading

Screws connection type is convenient for assmebly/disassenbling and exchange for packing unies



>>Product type and specification：

Item

Type

Specification

1

7-1/16″-3000psi  Annular BOP

Bore: 7-1/16″
Working pressure: 3,000psi
Top connection: 7-1/16″-3000psi 6B R45 SST Studded
Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

2

7-1/16″-3000psi  Single ram BOP/Double ram BOP

Bore: 7-1/16″
Working pressure: 3,000psi
Top connection: 7-1/16″-3000psi 6B R45 SST Studded
Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged

3

7-1/16″-5000psi  Annular BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7 1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged

4

7-1/16″-5000psi  Single ram BOP/Double ram BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7 1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged

5

7-1/16″-5000/10000psi Annular BOP

Bore: 7-1/16″
Working pressure: 5,000psi
Top connection: 7-1/16″-5000psi 6B R46 SST Studded
Bottom connection: 7-1/16″-10000psi 6BX BX156 SST Flanged

6

7-1/16″-10000psi  Single ram BOP/Double ram BOP

Bore: 7-1/16"
Working pressure: 10000psi
Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged

7

7-1/16″-10000/15000psi Annular BOP

Bore: 7-1/16″
Working pressure: 15,000psi
Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged

8

7-1/16″-15000psi  Single ram BOP/Double ram BOP

Bore: 7-1/16″
Working pressure: 15,000psi
Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded
Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged

9

9″-3000psi      Annular BOP

Bore: 9″
Working pressure: 3,000psi
Top connection: 9″-3000psi 6B R49 SST Studded
Bottom connection: 9″-3000psi 6B R49 SST Flanged

10

9″-3000psi       Single ram BOP/Double ram BOP

Bore: 9″
Working pressure: 3,000psi
Top connection: 9″-3000psi 6B R49 SST Studded
Bottom connection: 9″-3000psi 6B R49 SST Flanged

11

9″-5000psi      Annular BOP

Bore: 9″
Working pressure: 5,000psi
Top connection: 9″-5000psi 6B R50 SST Studded
Bottom connection: 9″-5000psi 6B R50 SST Flanged

12

9″-5000psi       Single ram BOP/Double ram BOP

Bore: 9″
Working pressure: 5,000psi
Top connection: 9″-5000psi 6B R50 SST Studded
Bottom connection: 9″-5000psi 6B R50 SST Flanged

13

9″-5000/10000psi      Annular BOP

Bore: 9″
Working pressure: 5,000psi
Top connection: 9-″5000psi 6B R50 SST Studded
Bottom connection: 9″-10000psi 6BX BX157 SST Flanged

14

9″-10000psi      Single ram BOP/Double ram BOP

Bore: 9″
Working pressure: 10,000psi
Top connection: 9-″10000psi 6BX BX157 SST Studded
Bottom connection: 9″-10000psi 6BX BX157 SST Flanged

15

11″-3000psi     Annular BOP

Bore: 11″
Working pressure: 3,000psi
Top connection: 11″-3000psi 6B R53 SST Studded
Bottom connection: 11″-3000psi 6B R53 SST Flanged

16

11″-3000psi      Single ram BOP/Double ram BOP

Bore: 11″
Working pressure: 3,000psi
Top connection: 11″-3000psi 6B R53 SST Studded
Bottom connection: 11″-3000psi 6B R53 SST Flanged

17

11″-5000psi     Annular BOP

Bore: 11″
Working pressure: 5,000psi
Top connection: 11″-5000psi 6B R54 SST Studded
Bottom connection: 11″-5000psi 6B R54 SST Flanged

18

11″-5000psi      Single ram BOP/Double ram BOP

Bore: 11″
Working pressure: 5,000psi
Top connection: 11″-5000psi 6B R54 SST Studded
Bottom connection: 11″-5000psi 6B R54 SST Flanged

19

11″-5000/10000psi Annular BOP

Bore: 11″
Working pressure: 5,000psi
Top connection: 11″-5000psi 6B R54 SST Studded
Bottom connection: 11″-10000psi 6BX BX158 SST Flanged

20

11″-10000psi     Single ram BOP/Double ram BOP

Bore: 11″
Working pressure: 10,000psi
Top connection: 11″-10000psi 6BX BX158 SST Studded
Bottom connection: 11″-10000psi 6BX BX158 SST Flanged

21

11″-10000/15000psi Annular BOP

Bore: 11″
Working pressure: 10,000psi
Top connection: 11″-10000psi 6BX BX158 SST Studded
Bottom connection: 11″-15000psi 6BX BX158 SST Flanged

22

11″-15000psi     Single ram BOP/Double ram BOP

Bore: 11″
Working pressure: 15,000psi
Top connection: 11″-15000psi 6BX BX158 SST Studded
Bottom connection: 11”-15000psi 6BX BX158 SST Flanged

23

13 5/8″-3000psi  Annular BOP

Bore: 13 5/8″
Working pressure: 3,000psi
Top connection: 13 5/8″-3000psi 6B R57 SST Studded
Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged

24

13-5/8″-3000psi  Single ram BOP/Double ram BOP

Bore: 13 5/8″
Working pressure: 3,000psi
Top connection: 13 5/8″-3000psi 6B R57 SST Studded
Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged

25

13-5/8″-5000psi  Annular BOP

Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged

26

13-5/8″-5000psi  Single ram BOP/Double ram BOP

Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged

27

13-5/8″-5000/10000psi Annular BOP

Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged

28

13-5/8″-10000psi  Single ram BOP/Double ram BOP

Bore: 13 5/8″
Working pressure: 10,000psi
Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded
Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged

29

13-5/8″-10000/15000psi Annular BOP

Bore: 13 5/8″
Working pressure: 10,000psi
Top connection:13 5/8″-10000psi 6BX BX159 SST Studded
Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged

30

13-5/8″-15000psi  Single ram BOP/Double ram BOP

Bore: 13 5/8″
Working pressure: 15,000psi
Top connection:13 5/8″-15000psi 6BX BX159 SST Studded
Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged

31

16-3/4″-5000psi  Annular BOP

Bore: 16 3/4″
Working pressure: 5,000psi
Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded
Bottom connection: 16 3/4″-5000psi 6BX BX162 SST Flanged

32

16-3/4″-5000psi  Single ram BOP/Double ram BOP

Bore: 16 3/4″
Working pressure: 5,000psi
Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded
Bottom connection: 16 3/4″-5000psi 6BX BX162 SST Flanged

33

16-3/4″-5000/10000psi  Annular BOP

Bore: 16 3/4″
Working pressure: 5,000psi
Top connection: 16 3/4″-5000psi 6BX BX162 SST Studded
Bottom connection: 16 3/4″-10000psi 6BX BX162 SST Flanged

34

16-3/4″-10000psi  Single ram BOP/Double ram BOP

Bore: 16 3/4″
Working pressure: 10,000psi
Top connection: 16 3/4″-10000psi 6BX BX162 SST Studded
Bottom connection: 16 3/4″-10000psi 6BX BX162 SST Flanged

35

18-3/4″-5000psi   Annular BOP

Bore: 18 3/4″
Working pressure: 5,000psi
Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded
Bottom connection: 18 3/4″-5000psi 6BX BX163 SST Flanged

36

18-3/4″-5000psi  Single ram BOP/Double ram BOP

Bore: 18 3/4″
Working pressure: 5,000psi
Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded
Bottom connection: 18 3/4″-5000psi 6BX BX163 SST Flanged

37

18-3/4″-5000/10000psi  Annular BOP

Bore: 18 3/4″
Working pressure: 5,000psi
Top connection: 18 3/4″-5000psi 6BX BX163 SST Studded
Bottom connection: 18 3/4″-10000psi 6BX BX164 SST Flanged

38

18-3/4″-10000psi  Single ram BOP/Double ram BOP

Bore: 18 3/4″
Working pressure: 10,000psi
Top connection: 18 3/4″-10000psi 6BX BX164 SST Studded
Bottom connection: 18 3/4″-10000psi 6BX BX164 SST Flanged

39

18-3/4″-10000/15000psi Annular BOP

Bore: 18 3/4″
Working pressure: 10,000psi
Top connection: 18 3/4″-10000psi 6BX BX164 SST Studded
Bottom connection: 18 3/4″-15000psi 6BX BX164 SST Flanged

40

18-3/4″-15000psi  Single ram BOP/Double ram BOP

Bore: 18 3/4″
Working pressure: 15,000psi
Top connection: 18 3/4″-15000psi 6BX BX164 SST Studded
Bottom connection: 18 3/4″-15000psi 6BX BX164 SST Flanged

41

20-3/4″-3000psi  Annular BOP

Bore: 20 3/4″
Working pressure: 3,000psi
Top connection: 20 3/4″-3000psi 6B R74 SST Studded
Bottom connection: 20 3/4″-3000psi 6B R74 SST Flanged

42

20-3/4″-3000psi  Single ram BOP/Double ram BOP

Bore: 20 3/4″
Working pressure: 3,000psi
Top connection: 20 3/4″-3000psi 6B R74 SST Studded
Bottom connection: 20 3/4″-3000psi 6B R74 SST Flanged

43

21-1/4″-2000psi  Annular BOP

Bore: 21 1/4″
Working pressure: 2,000psi
Top connection: 21 1/4″-2000psi 6B R73 SST Studded
Bottom connection: 21 1/4″-2000psi 6B R73 SST Flanged

44

21-1/4″-2000psi  Single ram BOP/Double ram BOP

Bore: 21 1/4″
Working pressure: 2,000psi
Top connection: 21 1/4″-2000psi 6B R73 SST Studded
Bottom connection: 21 1/4″-2000psi 6B R73 SST Flanged

45

21-1/4″-5000psi   Annular BOP

Bore: 21 1/4″
Working pressure: 5,000psi
Top connection: 21 1/4″-5000psi 6B BX165 SST Studded
Bottom connection: 21 1/4″-5000psi 6B BX165 SST Flanged

46

21-1/4″-5000psi  Single ram BOP/Double ram BOP

Bore: 21 1/4″
Working pressure: 5,000psi
Top connection: 21 1/4″-5000psi 6B BX165 SST Studded
Bottom connection: 21 1/4″-5000psi 6B BX165 SST Flanged

47

21-1/4″-5000/10000psi Annular BOP

Bore: 21 1/4″
Working pressure: 5,000psi
Top connection: 21 1/4″-5000psi 6B BX165 SST Studded
Bottom connection: 21 1/4″-10000psi 6B BX166 SST Flanged

48

21-1/4″-10000psi  Single ram BOP/Double ram BOP

Bore: 21 1/4″
Working pressure: 10,000psi
Top connection: 21 1/4″-10000psi 6B BX166 SST Studded
Bottom connection: 21 1/4″-10000psi 6B BX166 SST Flanged

49

26-3/4″-2000psi  Annular BOP

Bore: 26 3/4″
Working pressure: 2,000psi
Top connection: 26 3/4″-2000psi 6B BX167 SST Studded
Bottom connection: 26 3/4″-2000psi 6B BX167 SST Flanged

50

26-3/4″-2000psi  Single ram BOP/Double ram BOP

Bore: 26 3/4″
Working pressure: 2,000psi
Top connection: 26 3/4″-2000psi 6B BX167 SST Studded
Bottom connection: 26 3/4″-2000psi 6B BX167 SST Flanged

51

26-3/4″-3000psi  Annular BOP

Bore: 26 3/4″
Working pressure: 3,000psi
Top connection: 26 3/4″-3000psi 6B BX168 SST Studded
Bottom connection: 26 3/4″-3000psi 6B BX168 SST Flanged

52

26-3/4″-3000psi  Single ram BOP/Double ram BOP

Bore: 26 3/4″
Working pressure: 3,000psi
Top connection: 26 3/4″-3000psi 6B BX168 SST Studded
Bottom connection: 26 3/4″-3000psi 6B BX168 SST Flanged
2013-2015 © Copyright: DRILLTECH MANUFACTURING CO.,LTD.
Mobile: +86-15532811817    E-mail: dtc11@drilltech.cn
