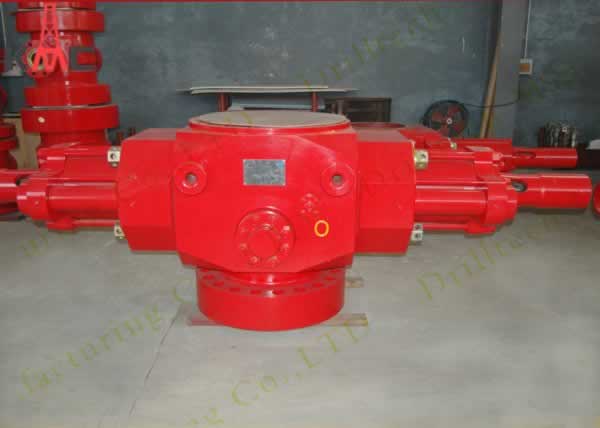

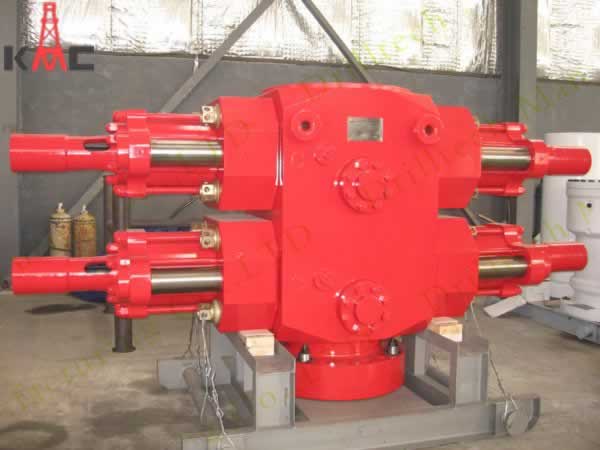

Forging blowout preventer







>>Forging BOP Product features：

Structural style：Cameron style

Two kinds of locking systen could be chosen:the manual locking system and the automatic hydaulic locking system

Not only the pipe rams and blind rams but aslo the variable bore rams and shear rams are available without any structure change

It is easy and convenient on-site to open the bonners by hydraulic pressure

The outlets on the both sides of the body make the operation on site flexible

The pressurized self-sealing sealing mechanism is used between the body and bonnets,so it is not necessary to apply too much pretightening force to secure the reliability of sealing

It is very convenient to lift and transport the BOPs with the four lifting rods

The new sealing mechanism of ram shaft secures the sealing reliability under the high pressure

The ring grooves of flanges are all lined with the corrosion resistant alloy

Matched-manufacturing is not necessary for the bonnets and body,so the diserepancy could be eliminated by thestructure.And it is convenient for the maintenance in the future

According to the latest API Spec 16A standard

According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

According to user requirements and the use of environmental can choose casting or forging.



>>Product type and specification：

Item

Type

Specification

1

9″-10000psi Double ram BOP

Bore: 9″
Working pressure: 10,000psi
Top connection: 9″-10000psi 6BX BX157 SST Studded
Bottom connection: 9″-10000psi 6BX BX157 SST Flanged

2

9″-10000psi Single ram BOP

Bore: 9″
Working pressure: 10,000psi
Top connection: 9-″10000psi 6BX BX157 SST Studded
Bottom connection: 9″-10000psi 6BX BX157 SST Flanged

3

11″-10000psi Double ram BOP

Bore: 11″
Working pressure: 10,000psi
Top connection: 11″-10000psi 6BX BX158 SST Studded
Bottom connection: 11″-10000psi 6BX BX158 SST Flanged

4

11″-10000psi Single ram BOP

Bore: 11″
Working pressure: 10,000psi
Top connection: 11″-10000psi 6BX BX158 SST Studded
Bottom connection: 11″-10000psi 6BX BX158 SST Flanged

5

11″-15000psi Single ram BOP

Bore: 11″
Working pressure: 15,000psi
Top connection: 11″-15000psi 6BX BX158 SST Studded
Bottom connection: 11”-15000psi 6BX BX158 SST Flanged

6

11″-15000psi Double ram BOP

Bore: 11″
Working pressure: 15,000psi
Top connection: 11″-15000psi 6BX BX158 SST Studded
Bottom connection: 11″-15000psi 6BX BX158 SST Flanged

7

13 5/8″-10000psi Double ram BOP

Bore: 13 5/8″
Working pressure: 10,000psi
Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded
Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged

8

13 5/8″-10000psi Single ram BOP

Bore: 13 5/8″
Working pressure: 10,000psi
Top connection: 13 5/8″-10000psi 6BX BX159 SST Studded
Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged

9

13 5/8″-15000psi Single ram BOP

Bore: 13 5/8″
Working pressure: 15,000psi
Top connection:13 5/8″-15000psi 6BX BX159 SST Studded
Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged

10

13 5/8″-15000psi Double ram BOP

Bore: 13 5/8”
Working pressure: 15,000psi
Top connection: 13 5/8″-15000psi 6BX BX159 SST Studded
Bottom connection: 13 5/8″-15000psi 6BX BX159 SST Flanged
