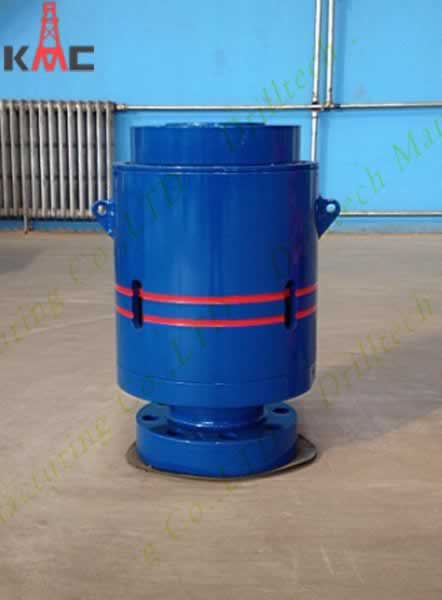

Quick connector





>>Product features：

Hydraulic connector is fast connection equipment, as the API6A standard flange on both ends

Features: compact structure, safe and reliable, automatic lock



>>Technical parameters

Type

LJQ0370

LJQ0470

Top connection

3 1/16”-10000PSI 6BX BX154 Studded

4 1/16”-10000PSI 6BX BX155 Studded

Bottom connection

3 1/16”-10000PSI 6BX BX154 Flanged

4 1/16”-10000PSI 6BX BX155 Flanged

Bore

77.8mm(3 1/16”)

103.2mm(4 1/16”)

Out diameter

323.5mm(12 3/4”)

385mm(15 1/4”)

High

565mm(22 1/4”)

630mm(24 7/8”)

Weight

252Kg

382Kg

Working pressure

70Mpa(10000psi)

Oil pressure rating

21Mpa(3000psi)

Oil interface specification

NPT 1/2”

Open the oil

0.15L

0.18L

Temperature rating

T-20
