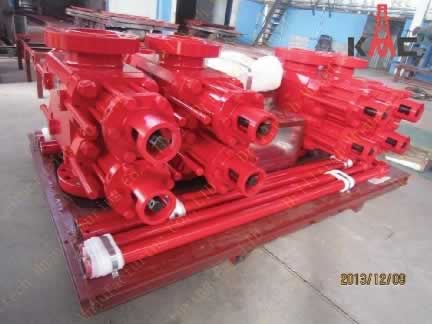

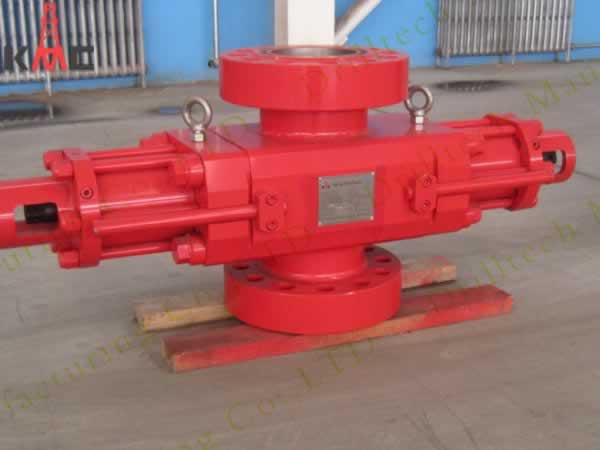

BOP for workover

Contact Now

Description

>>BOP for workover Product features:
l According to the latest API Spec 16A standard
l Structural style：Cameron style;Shaffer style.
l According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim
l The ring grooves of flanges are all lined with the corrosion resistant alloy
l Forging structure makes the BOPs smaller and lighter, and convenient for installing and transporting.
l All exposed surfaces including the shell, bonnets, cylinders and cylinder heads are chemical nickel plated with better corrosion prevention properties.
l For convenient ram assemblies changing, there’re two guiding rods on both sides of the bonnets.

>>Product type and specification：

Item	Type	Specification
1	7-1/16″-3000psi Annular BOP	Bore: 7-1/16″ Working pressure: 3000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
2	7-1/16″-3000psi Double ram BOP	Bore: 7-1/16” Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
3	7-1/16″-3000psi Single ram BOP	Bore: 7-1/16″ Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
4	7-1/16″-5000psi Annular BOP	Bore: 7-1/16″ Working pressure: 5000psi Top connection: 7-1/16″-5000psi 6B R46 SST Studded Bottom connection: 7-1/1″6-5000psi 6B R46 SST Flanged
5	7-1/16″-5000psi Double ram BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7 1/16″-5000psi 6B R46 SST Studded Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged
6	7-1/16″-5000psi Single ram BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7 1/16″-5000psi 6B R46 SST Studded Bottom connection: 7 1/16″-5000psi 6B R46 SST Flanged
7	7-1/16″-5000/10000psi Annular BOP	Bore: 7-1/16″ Working pressure: 5000psi Top connection: 7-1/16″-5000psi 6B R46 SST Studded Bottom connection: 7-1/16″-10000psi 6BX BX156 SST Flanged
8	7-1/16″-10000psi Double ram BOP	Bore: 7-1/16″ Working pressure:10000psi Top connection: 7 1/1″6-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged
9	7-1/16″-10000psi Single ram BOP	Bore: 7-1/16″ Working pressure: 10000psi Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-10000psi 6BX BX156 SST Flanged
10	7-1/16″-10000/15000psi Annular BOP	Bore: 7-1/16″ Working pressure: 10000psi Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
11	7-1/16″-15000psi Double ram BOP	Bore: 7-1/16″ Working pressure: 15,000psi Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
12	7-1/16″-15000psi Single ram BOP	Bore: 7-1/16″ Working pressure: 15,000psi Top connection: 7 1/16″-15000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
